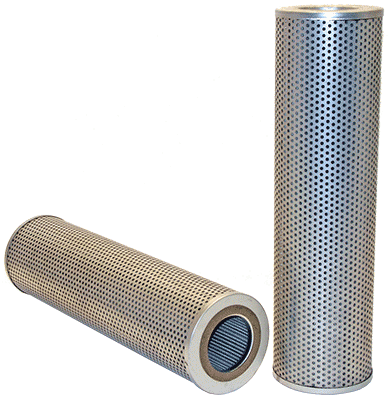

P164283 | DONALDSON | Pleated Paper Filter Element
***Image may vary***

P164283 | Donaldson | OFS # 97-01-0442

  • $73.65


Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 12.00 NOMINAL

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID



Dimensional Specifications
Outer Diameter, Top: 4.39 IN (111.51 MM)

Outer Diameter, Bottom: 4.39 IN (111.51 MM)

Inner Diameter, Top: 2.44 IN (61.98 MM)

Inner Diameter, Bottom:

Length: 16.00 IN (406.40 MM)

Thread: NONE



Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating:

Outer Jacket: YES

Configuration: SINGLE OPEN END



Packaging Specifications
Number per Carton: 1

Carton Weight: 3.10 LB (1.41 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
