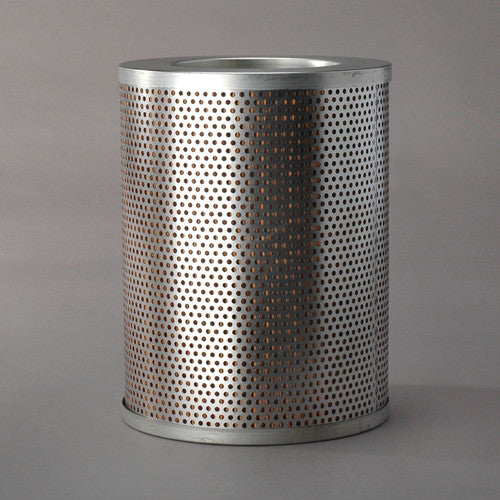

P162033 | DONALDSON | Pleated Paper Filter Element
***Image may vary***

P162033 | Donaldson | OFS # 97-01-0424

  • $14.00


Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 0.00 NOMINAL

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID



Dimensional Specifications
Outer Diameter, Top: 6.83 IN (173.48 MM)

Outer Diameter, Bottom: 6.83 IN (173.48 MM)

Inner Diameter, Top: 3.94 IN (100.08 MM)

Inner Diameter, Bottom: 3.94 IN (100.08 MM)

Length: 9.00 IN (228.60 MM)

Thread: NONE



Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating:

Outer Jacket: YES

Configuration: DOUBLE OPEN END



Packaging Specifications
Number per Carton: 1

Carton Weight: 19.10 LB (8.66 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
