KC990005 | Air Supply | OFS # 97-22-0099
Performance Data
Micron Rating: 15.00 NOMINAL
Beta Rating: N/A
Collapse Pressure Rating: NOT RATED
Maximum Temperature: 225 F
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 10.38 IN (263.65 MM)
Outer Diameter, Bottom: 10.38 IN (263.65 MM)
Inner Diameter, Top: 6.04 IN (153.42 MM)
Inner Diameter, Bottom:
Length: 22.88 IN (581.15 MM)
Thread: NONE
Physical Specifications
Handle: NONE
Seal Material:
Type of Adhesive: PLASTISOL
Type of Endcap: PLATED STEEL
Center Tube: PLATED STEEL
Type of Media: PAPER
Filter Area: SQ.IN.
Plating: NONE
Outer Jacket: YES - METAL
Configuration:
Packaging Specifications
Number per Carton: 2
Carton Weight: **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**

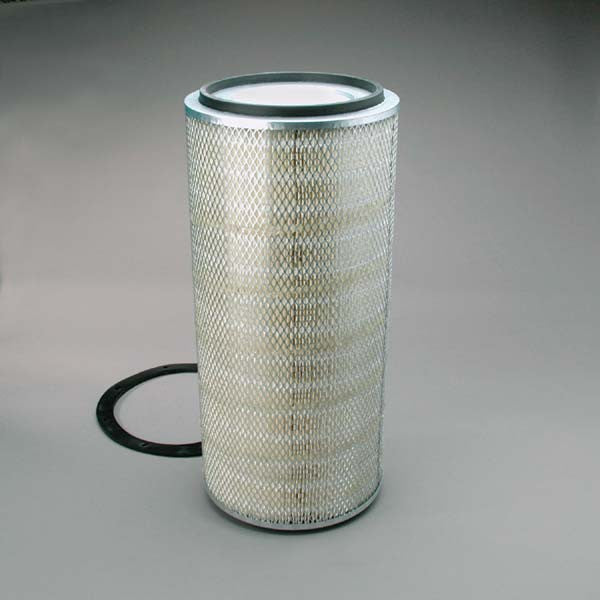

Intake Air Filter Element
