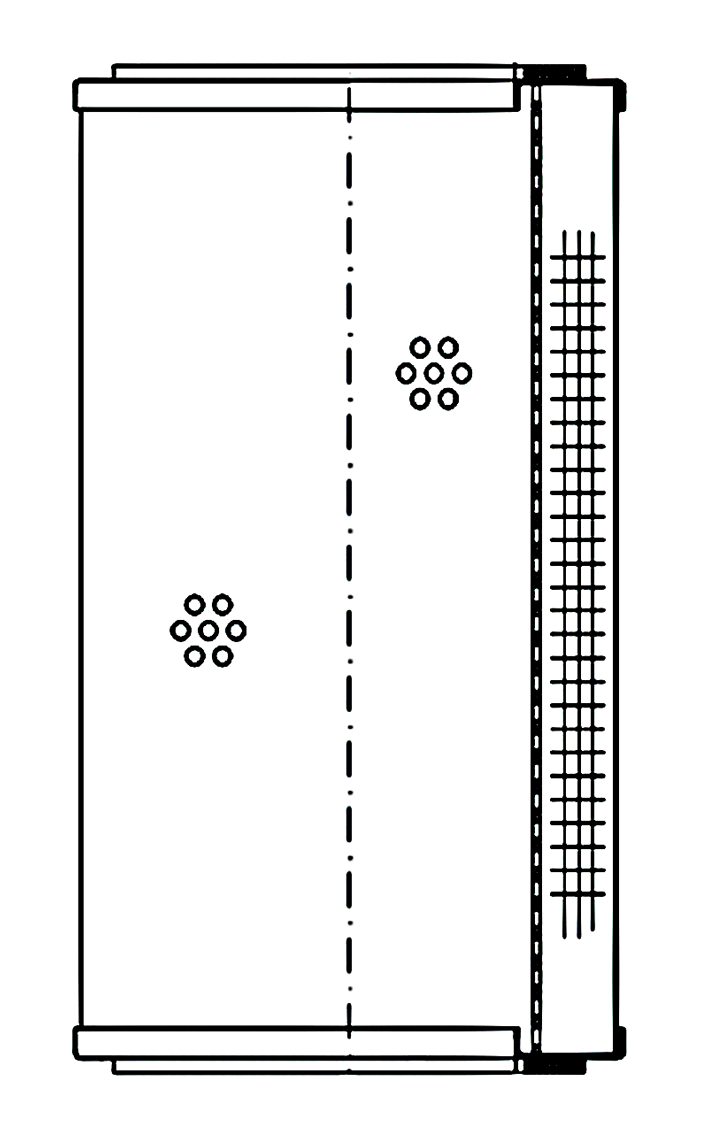

Sf-Filter | HY9592/2 | Max Performance Glass Hydraulic Element | OFS # 97-05-3178

PLEASE CALL

Performance Data
Micron Rating:  0.00 ABSOLUTE

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow:  INSIDE-OUT

Dimensional Specifications
Outer Diameter, Top:  5.13 IN   (130.30 MM)

Outer Diameter, Bottom:  5.13 IN   (130.30 MM)

Inner Diameter, Top:  3.38 IN   (85.85 MM)

Inner Diameter, Bottom:

Length:  7.00 IN   (177.80 MM)

Thread:  N/A

Physical Specifications
Handle:  NONE

Seal Material:  BUNA A

Type of Adhesive:

Type of Endcap:  STEEL

Center Tube:  STEEL

Type of Media:  MICROGLASS

Filter Area:

Plating:

Outer Jacket:  YES - PERFORATED

Configuration:  SINGLE OPEN END

Packaging Specifications
Number per Carton:  1

Carton Weight:  22.80 LB   (10.34 KG) ***All Online Filter Supply replacement parts are equivalent to or interchangeable with original manufacture parts, Names and part # used for cross reference only.***
