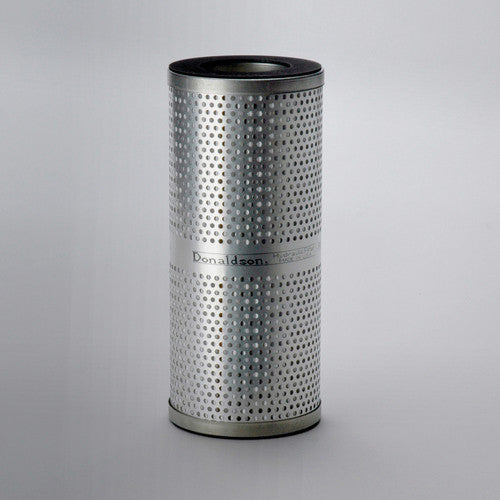

HFP170740 | DONALDSON | Pleated Paper Filter Element
***Image may vary***

HFP170740 | Donaldson | OFS # 97-01-0919

  • $13.15

Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 3.99 IN (101.35 MM)

Outer Diameter, Bottom: 3.99 IN (101.35 MM)

Inner Diameter, Top: 2.30 IN (58.42 MM)

Inner Diameter, Bottom: 2.30 IN (58.42 MM)

Length: 9.25 IN (234.95 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: NONE

Type of Adhesive:

Type of Endcap: PLATED STEEL


Type of Media: PAPER

Filter Area: SQ.IN.


Outer Jacket: YES

Configuration: DOUBLE OPEN END

Packaging Specifications
Number per Carton: 12

Carton Weight: 14.40 LB (6.53 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
