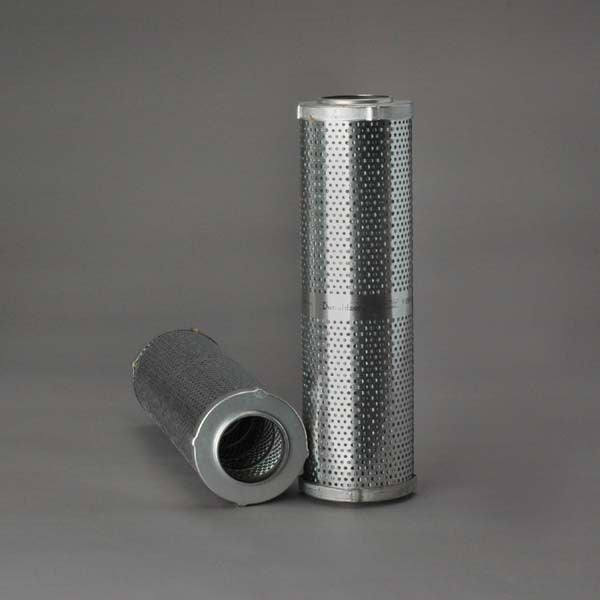

H9057 | Baldwin | Pleated Microglass Element
***Image may vary***

H9057 | Baldwin | Pleated Microglass Element | OFS # 97-F9400-13K3B

  • $54.50


PLEATED MICROGLASS ELEMENT Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 3.00 ABSOLUTE

Beta Rating: B3 = 200

Collapse Pressure Rating: 150 PSID

Maximum Temperature: 250 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 50 PSID



Dimensional Specifications
Outer Diameter, Top: 3.80 IN (96.52 MM)

Outer Diameter, Bottom: 3.80 IN (96.52 MM)

Inner Diameter, Top: 2.19 IN (55.63 MM)

Inner Diameter, Bottom: 2.19 IN (55.63 MM)

Length: 13.10 IN (332.74 MM)

Thread: NONE



Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: EPOXY

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: MICROGLASS

Filter Area: 1150 SQ.IN.

Plating: ZINC PLATED

Outer Jacket: NONE - NONE

Configuration: DOUBLE OPEN END



Packaging Specifications
Number per Carton: 1

Carton Weight: 2.70 LB (1.22 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
