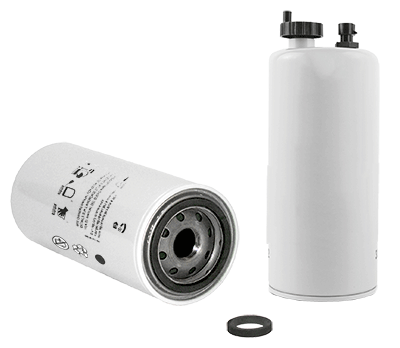

FS19596 | Fleetguard | OFS # 97-28-8918

PRICE PER UNIT (MUST ORDER FULL CARTON OF 12 UNITS)

Fuel/Water Separator Spin-On Usually ships in 24-48 hours Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: 100 PISD

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Additional Notes: INCLUDES: DRAIN, SENSOR PORT, AND REUSABLE SENSOR

Dimensional Specifications
Outer Diameter, Top: 3.69 IN (93.73 MM)

Outer Diameter, Bottom: 3.69 IN (93.73 MM)

Inner Diameter, Top:

Inner Diameter, Bottom:

Length: 10.04 IN (255.02 MM)

Thread: 1-14

Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: EPOXY

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: 721.6 SQ.IN.

Plating: N/A

Outer Jacket: YES - METAL

Configuration: SINGLE OPEN SPIN ON

Packaging Specifications
Number per Carton: 12

Carton Weight 24.00 LB (10.89 KG)
