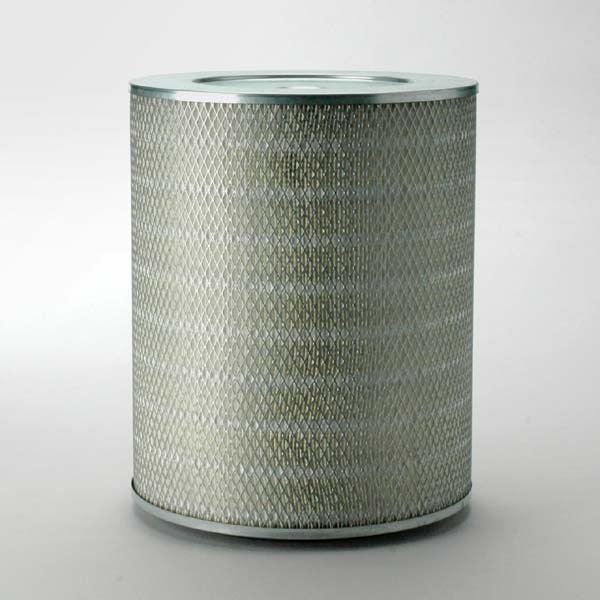

FA3596 | Permatic | Intake Air Filter Element
***Image may vary***

FA3596 | Permatic | OFS # 97-22-1100

  • $72.33


Usually Ships In 24-48 Hours

Performance Data
Micron Rating:  15.00 NOMINAL

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID



Dimensional Specifications
Outer Diameter, Top:  11.88 IN   (301.75 MM)

Outer Diameter, Bottom:

Inner Diameter, Top:  0.41 IN   (10.41 MM)

Inner Diameter, Bottom:  7.50 IN   (190.50 MM)

Length:  14.75 IN   (374.65 MM)

Thread:



Physical Specifications
Handle:  NONE

Seal Material:

Type of Adhesive:

Type of Endcap:  PLATED STEEL

Center Tube:

Type of Media:  PAPER

Filter Area:  SQ.IN.

Plating:

Outer Jacket:  YES

Configuration:



Packaging Specifications
Number per Carton:  1

Carton Weight:  8.90 LB   (4.04 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**

Intake Air Filter Element
