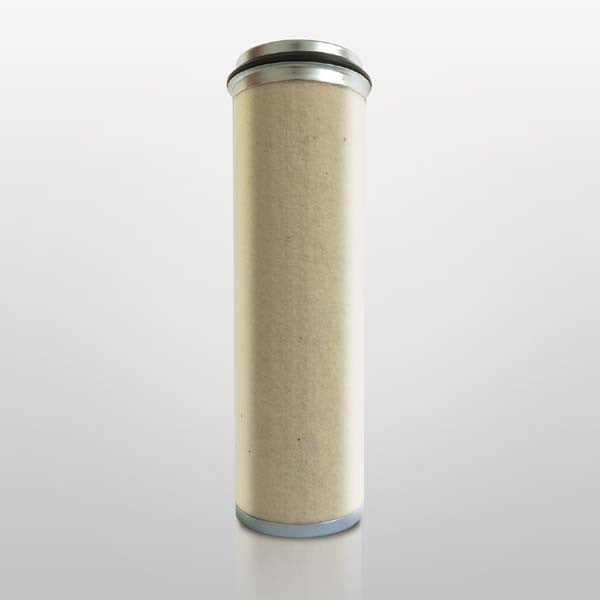

FA3435 | Permatic | Intake Air Filter Element
***Image may vary***

FA3435 | Permatic | OFS # 97-22-0695

  • $48.60


Usually Ships In 24-48 Hours

Performance Data
Micron Rating:  15.00 NOMINAL

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID



Dimensional Specifications
Outer Diameter, Top:  4.76 IN   (120.90 MM)

Outer Diameter, Bottom:  4.49 IN   (114.05 MM)

Inner Diameter, Top:  3.92 IN   (99.57 MM)

Inner Diameter, Bottom:  0.67 IN   (17.02 MM)

Length:  14.96 IN   (379.98 MM)

Thread:  NONE



Physical Specifications
Handle:  NONE

Seal Material:  BUNA-N

Type of Adhesive:

Type of Endcap:  PLATED STEEL

Center Tube:  STEEL

Type of Media:  FELT

Filter Area:  SQ.IN.

Plating:

Outer Jacket:  YES

Configuration:  SINGLE W BOLT HOLE



Packaging Specifications
Number per Carton:  1

Carton Weight:  2.00 LB   (0.91 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**

Intake Air Filter Element
