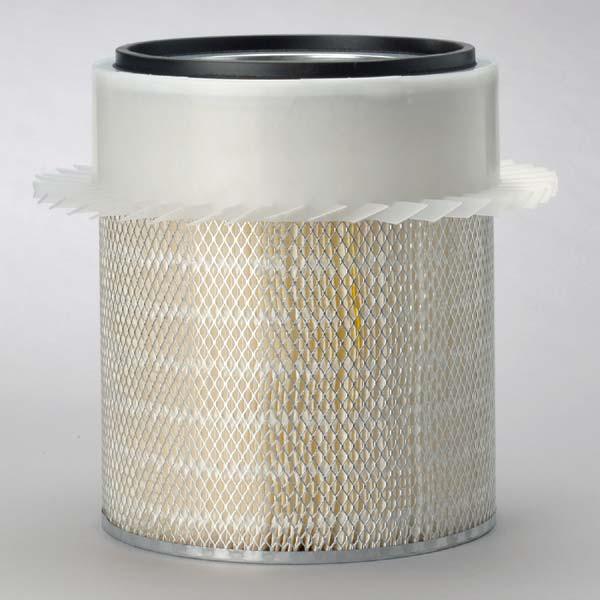

D8PJ9601AA | Ford | W/Fin | OFS # 97-22-0515

Usually Ships In 24-48 Hours

Performance Data
Micron Rating:  15.00 NOMINAL

Beta Rating:  N/A

Collapse Pressure Rating:  N/A

Maximum Temperature:  250 F

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Dimensional Specifications
Outer Diameter, Top:  15.50 IN   (393.70 MM)

Outer Diameter, Bottom:  12.09 IN   (307.09 MM)

Inner Diameter, Top:  0.53 IN   (13.46 MM)

Inner Diameter, Bottom:  7.72 IN   (196.09 MM)

Length:  14.50 IN   (368.30 MM)

Thread:  NONE

Physical Specifications
Handle:  NONE

Seal Material:  BUNA-N

Type of Adhesive:  EPOXY

Type of Endcap:  PLATED STEEL

Center Tube:  PLATED STEEL

Type of Media:  PAPER

Filter Area:  10670.85 SQ.IN

Plating:  N/A

Outer Jacket:  YES - METAL

Configuration:  SINGLE W/ BOLT HOLE

Packaging Specifications
Number per Carton:  1

Carton Weight:  10.00 LB   (4.54 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacturer parts, Names and part # used for cross reference only.**
