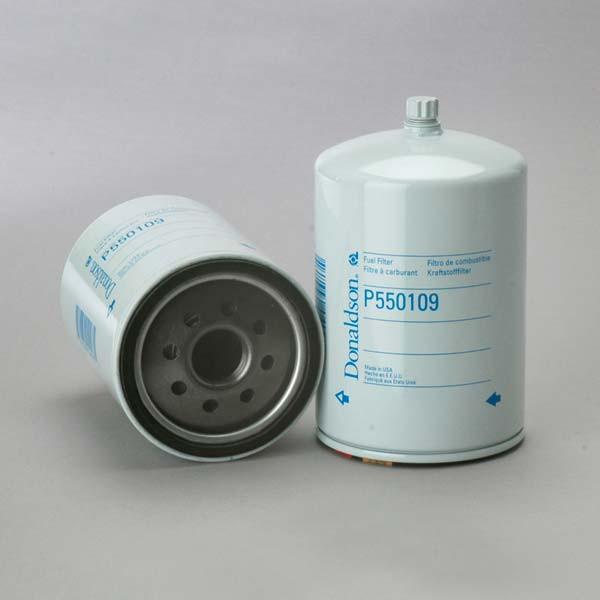

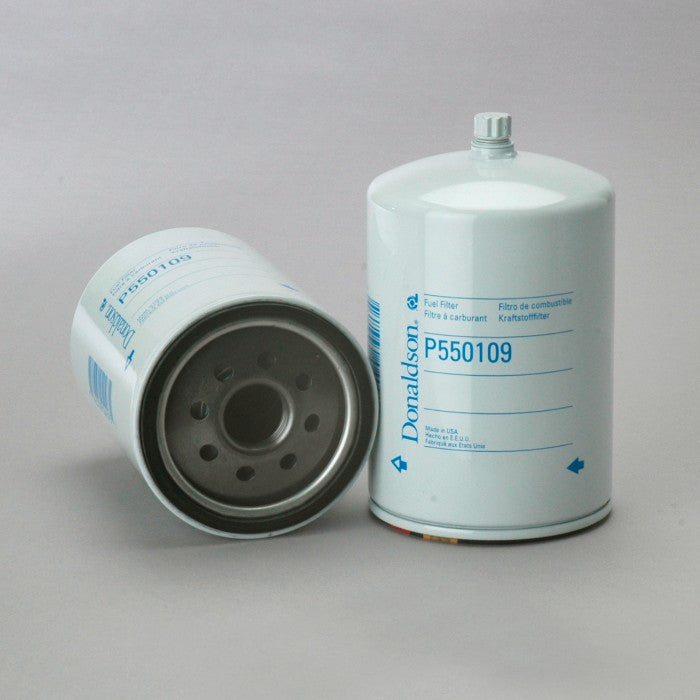

D3HZ9365A | Ford | OFS # 97-28-0786

Usually Ships In 24-48 Hours

Performance Data
Micron Rating:  15.00

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Dimensional Specifications
Outer Diameter, Top:  3.73 IN   (94.74 MM)

Outer Diameter, Bottom:  3.73 IN   (94.74 MM)

Inner Diameter, Top:

Inner Diameter, Bottom:

Length:  6.25 IN   (158.75 MM)

Thread:  1-14 UNS-2B

Physical Specifications
Handle:  NONE

Seal Material:  BUNA-N

Type of Adhesive:

Type of Endcap:  PLATED STEEL

Center Tube:  STEEL

Type of Media:  PAPER

Filter Area:  SQ.IN.

Plating:

Outer Jacket:  YES

Configuration:  SINGLE OPEN END

Packaging Specifications
Number per Carton:  1

Carton Weight:  14.10 LB   (6.40 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacturer parts, Names and part # used for cross reference only.**
