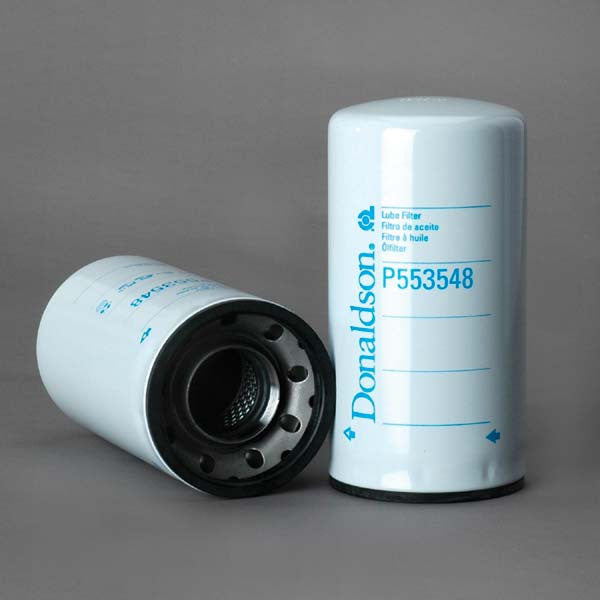

CULF3548 | Komatsu Dresser | OFS # 97-25-0498

Spin-On Filter Element Usually Ships In 24-48 Hours

Performance Data
Micron Rating:  0.00

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Dimensional Specifications
Outer Diameter, Top:  4.68 IN   (118.87 MM)

Outer Diameter, Bottom:  4.68 IN   (118.87 MM)

Inner Diameter, Top:

Inner Diameter, Bottom:

Length:  9.36 IN   (237.74 MM)

Thread:  2 1/4-12

Physical Specifications
Handle:  NONE

Seal Material:

Type of Adhesive:  PLASTISOL

Type of Endcap:  PLATED STEEL

Center Tube:  STEEL

Type of Media:

Filter Area:  SQ.IN.

Plating:  ELECTROTIN PLATED

Outer Jacket:  YES

Configuration:  SINGLE OPEN END

Packaging Specifications
Number per Carton:  1

Carton Weight:  18.70 LB   (8.48 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
