C33039 | Ingersoll Rand | Spin-On Element

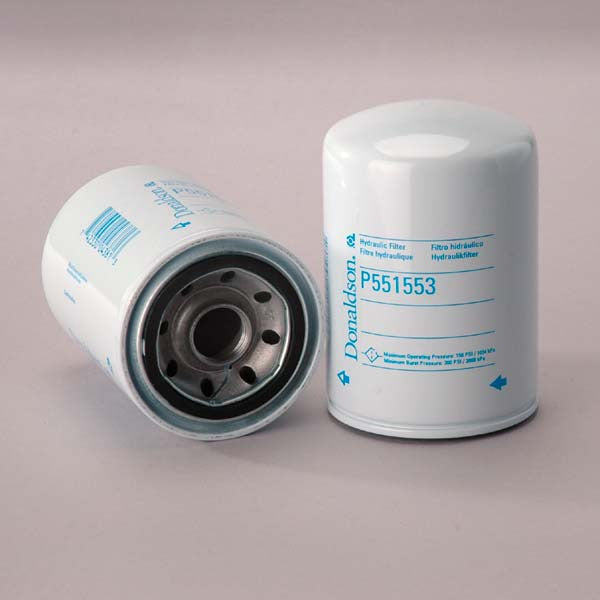

***Image may vary***

C33039 | Ingersoll Rand | Spin-On Element | OFS # 97-25-0052

  • $6.57


SPIN-ON ELEMENT Spin-On Element Usually Ships In 24-48 Hours

Performance Data
Micron Rating:  25.00 NOMINAL

Beta Rating:  N/A

Collapse Pressure Rating:  100 PSID

Maximum Temperature:  225 F

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID



Dimensional Specifications
Outer Diameter, Top:  3.70 IN   (93.98 MM)

Outer Diameter, Bottom:  3.70 IN   (93.98 MM)

Inner Diameter, Top:

Inner Diameter, Bottom:

Length:  5.50 IN   (139.70 MM)

Thread:  1"-12 UNF



Physical Specifications
Handle:  NONE

Seal Material:  BUNA-N

Type of Adhesive:  PLASTISOL

Type of Endcap:  PLATED STEEL

Center Tube:  PLATED STEEL

Type of Media:  PAPER

Filter Area:  SQ.IN.

Plating:  ELECTROTIN PLATED

Outer Jacket:  YES - METAL

Configuration:  SINGLE OPEN END



Packaging Specifications
Number per Carton:  12

Carton Weight:  14.70 LB   (6.67 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
