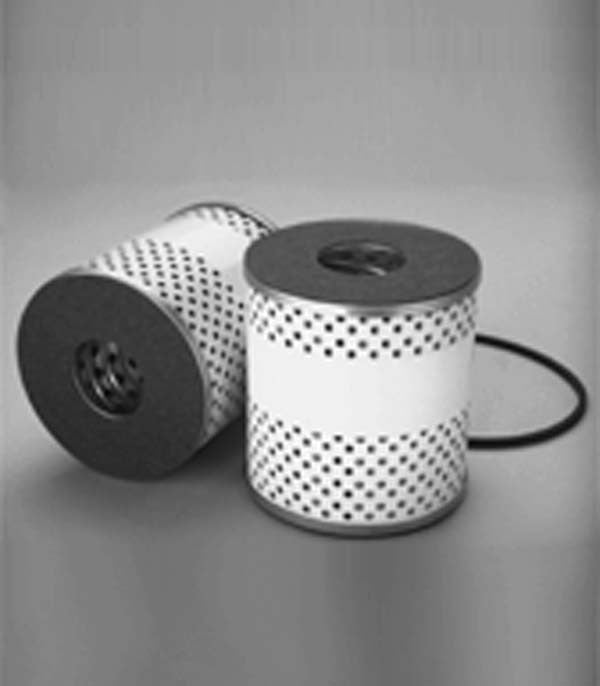

AC70V | Ac Delco | Pleated Paper Filter Element
***Image may vary***

AC70V | Ac Delco | | OFS # 97-01-0800

  • $9.79


Usually Ships In 24-48 Hours

Performance Data
Micron Rating:  0.00 NOMINAL

Beta Rating:

Collapse Pressure Rating:  75 PSID

Maximum Temperature:  225 F

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID



Dimensional Specifications
Outer Diameter, Top:  3.50 IN   (88.90 MM)

Outer Diameter, Bottom:  3.50 IN   (88.90 MM)

Inner Diameter, Top:  1.34 IN   (34.04 MM)

Inner Diameter, Bottom:  1.34 IN   (34.04 MM)

Length:  3.78 IN   (96.01 MM)

Thread:  NONE



Physical Specifications
Handle:  NONE

Seal Material:  BUNA-N

Type of Adhesive:  PLASTISOL

Type of Endcap:  PLATED STEEL

Center Tube:  PLATED STEEL

Type of Media:  PAPER

Filter Area:  SQ.IN.

Plating:  NONE

Outer Jacket:  YES - PAPER

Configuration:  DOUBLE OPEN END



Packaging Specifications
Number per Carton:  1

Carton Weight:  6.20 LB   (2.81 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
