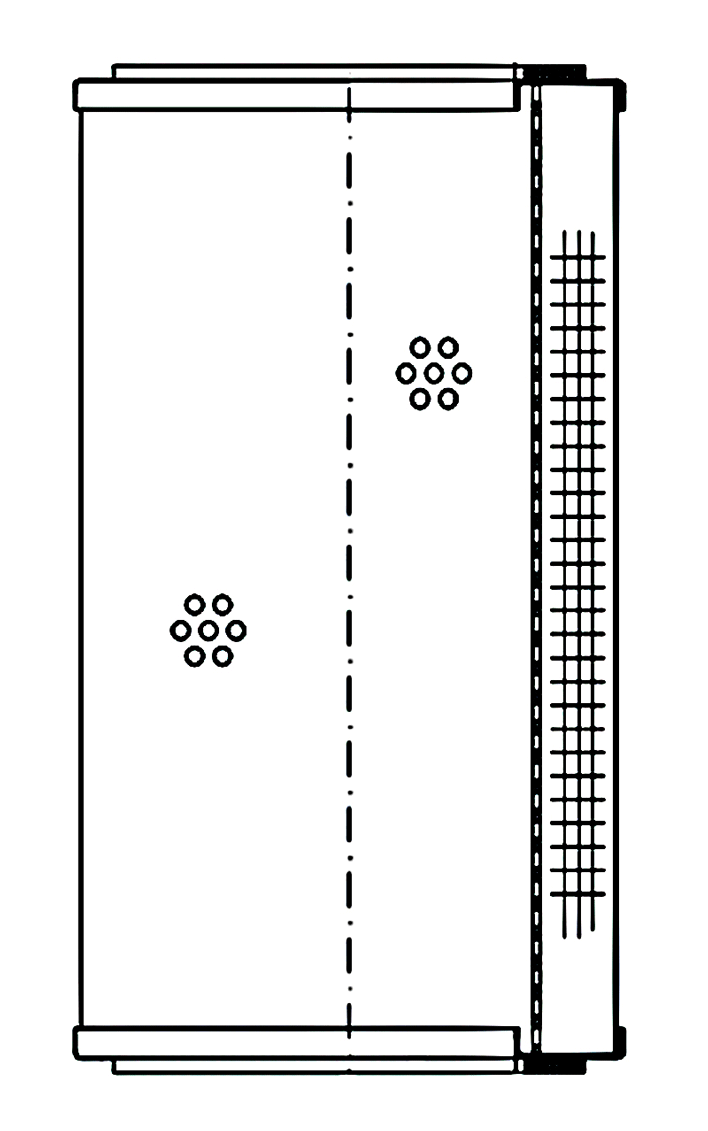

9437100569 | Manitowoc | OFS # 97-05-3505

2 WEEK LEAD TIME

PLEATED MICROGLASS ELEMENT

Performance Data
Micron Rating:  3.00 ABSOLUTE

Beta Rating:  N/A

Collapse Pressure Rating:  145 PSID

Maximum Temperature:  248 MAX

Direction of Flow:  OUTSIDE->IN

Dimensional Specifications
Outer Diameter, Top:  4.96 IN   (125.98 MM)

Outer Diameter, Bottom:  4.96 IN   (125.98 MM)

Inner Diameter, Top:  3.31 IN   (84.07 MM)

Inner Diameter, Bottom:  3.31 IN   (84.07 MM)

Length:  18.31 IN   (465.07 MM)

Thread:  NONE

Physical Specifications
Handle:  NONE

Seal Material:  CORK

Type of Adhesive:

Type of Endcap:

Center Tube:

Type of Media:  MICROGLASS

Filter Area:

Plating:

Outer Jacket:  NONE - NONE

Configuration:  DOUBLE OPEN END

Packaging Specifications
Number per Carton:  1

Carton Weight: ***All Online Filter Supply replacement parts are equivalent to or interchangeable with original manufacture parts, Names and part # used for cross reference only.***
