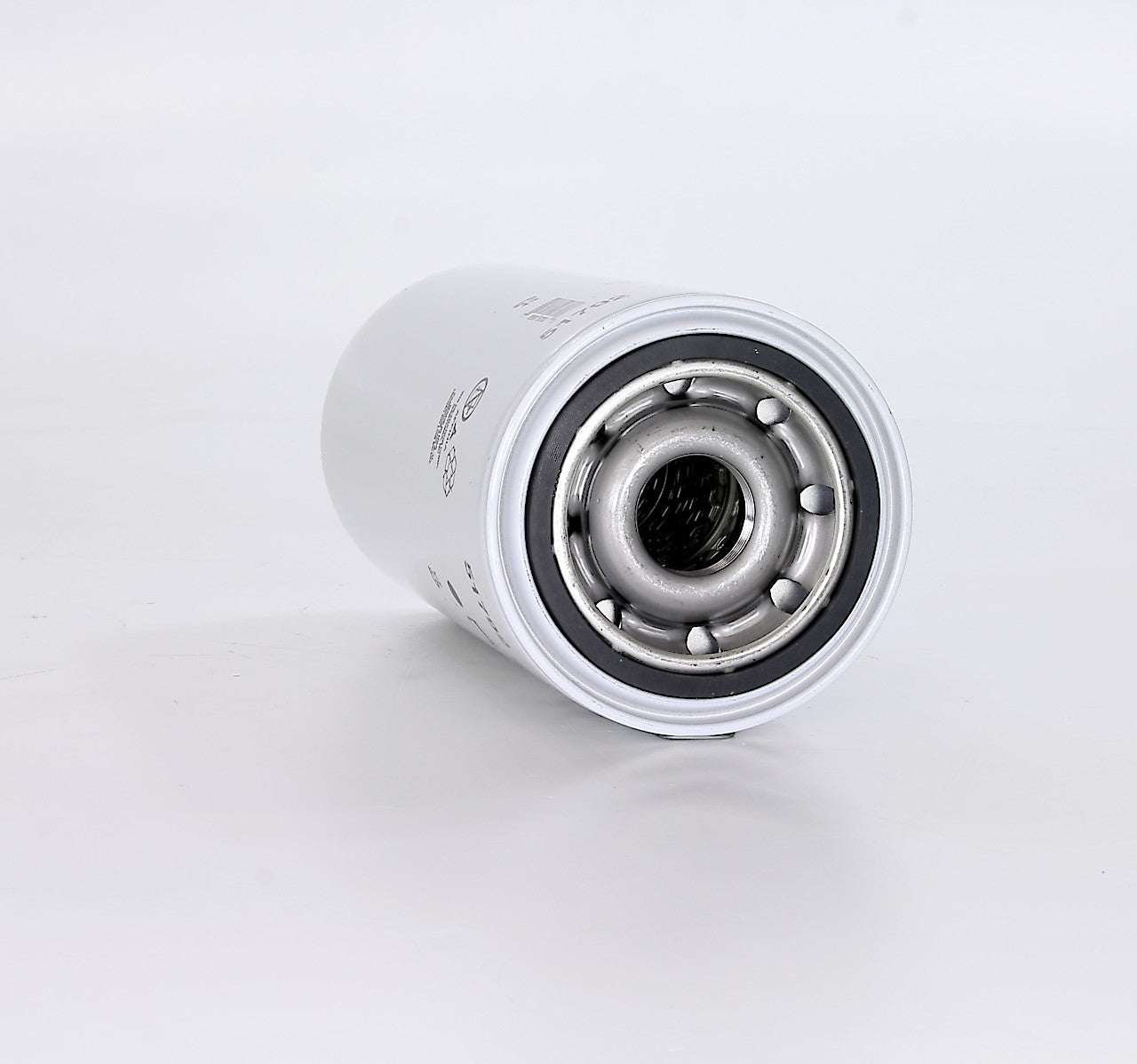

9334 | Crosland | Spin-On Filter Element | OFS # 97-25-0288

Performance Data
Micron Rating: 25.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: 225 PSI

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 5.38 IN (136.65 MM)

Outer Diameter, Bottom: 5.38 IN (136.65 MM)

Inner Diameter, Top:

Inner Diameter, Bottom:

Length: 12.20 IN (309.88 MM)

Thread: 1 1/2-16

Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: PLASTISOL

Type of Endcap: STEEL

Center Tube: STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: ELECTROTIN PLATED

Outer Jacket: YES - METAL

Configuration: SINGLE OPEN END

Packaging Specifications
Number per Carton: 6

Carton Weight: 25.10 LB (11.39 KG)

**All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference.*
