9007 | Crosland | OFS # 97-28-1432

Usually Ships In 24-48 Hours

Performance Data
Micron Rating:  15.00 NOMINAL

Beta Rating:  N/A

Collapse Pressure Rating:

Maximum Temperature:  225 F

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Dimensional Specifications
Outer Diameter, Top:  14.62 IN   (371.35 MM)

Outer Diameter, Bottom:  12.31 IN   (312.67 MM)

Inner Diameter, Top:  6.56 IN   (166.62 MM)

Inner Diameter, Bottom:  4.25 IN   (107.95 MM)

Length:  1.87 IN   (47.50 MM)

Thread:  NONE

Physical Specifications
Handle:  NONE

Seal Material:  MOLDED

Type of Adhesive:  PLASTISOL

Type of Endcap:  PLATED STEEL

Center Tube:  PLATED STEEL

Type of Media:  PAPER

Filter Area:  SQ.IN.

Plating:  NONE

Outer Jacket:  YES - METAL

Configuration:  DOUBLE OPEN END

Packaging Specifications
Number per Carton:  6

Carton Weight:  11.40 LB   (5.17 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**

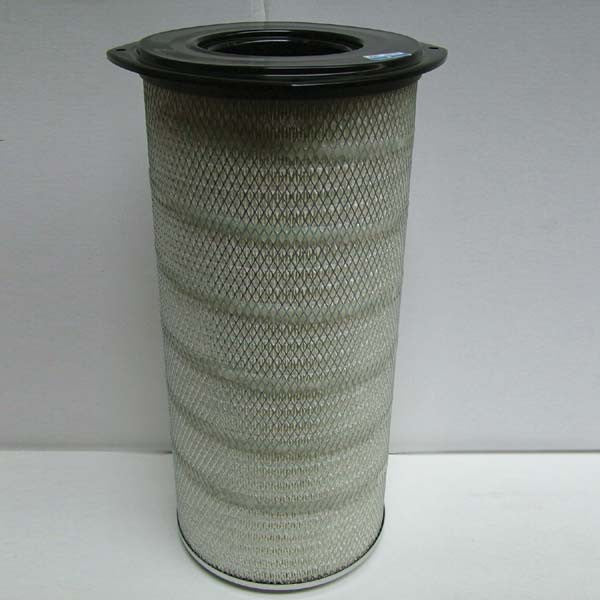

Intake Air Filter Element
