Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: N/A

Maximum Temperature: 250 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 11.70 IN (297.18 MM)

Outer Diameter, Bottom: 9.21 IN (233.93 MM)

Inner Diameter, Top: 4.86 IN (123.44 MM)

Inner Diameter, Bottom: 0.54 IN (13.72 MM)

Length: 10.56 IN (268.22 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: PLASTISOL

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: NONE

Outer Jacket: YES - METAL

Configuration: SINGLE/BOLT/FINS

Packaging Specifications
Number per Carton: 1

Carton Weight: 5.50 LB (2.49 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**

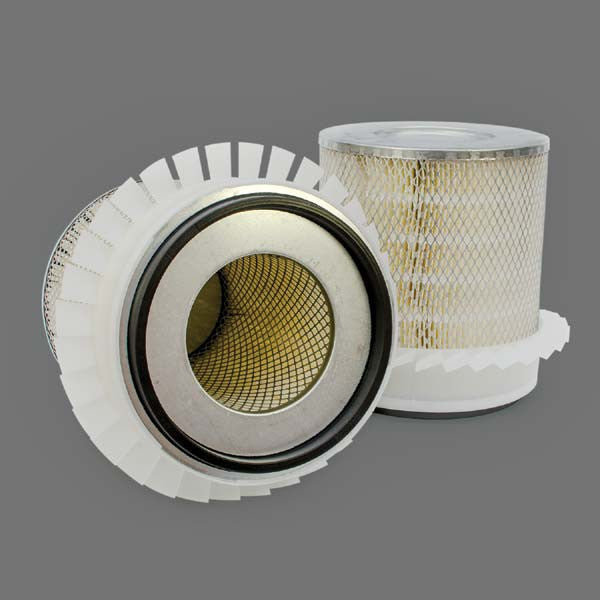

Intake Air Filter Element
