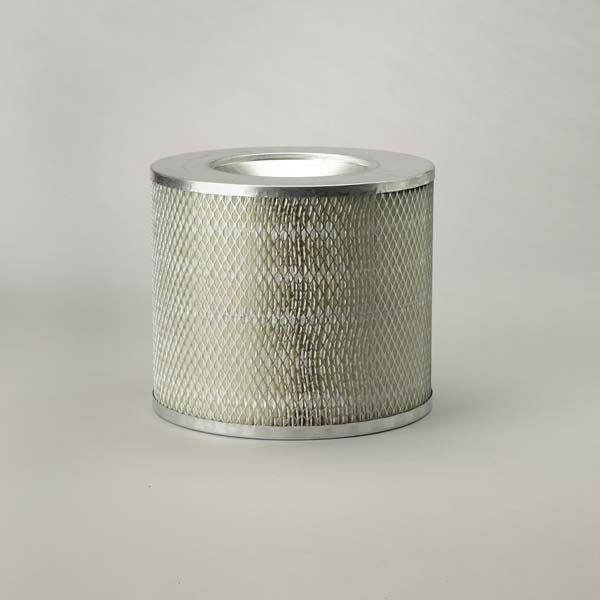

851SA2065 | Baldwin-Lima-Ham | Intake Air Filter Element
***Image may vary***

851SA2065 | Baldwin-Lima-Ham | OFS # 97-22-0498

  • $40.72


Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: N/A

Maximum Temperature: 250 F

Direction of Flow: INSIDE->OUT

Recommended Changeout Differential Pressure: 20 PSID



Dimensional Specifications
Outer Diameter, Top: 10.25 IN (260.35 MM)

Outer Diameter, Bottom: 10.25 IN (260.35 MM)

Inner Diameter, Top: 0.50 IN (12.70 MM)

Inner Diameter, Bottom: 6.06 IN (153.92 MM)

Length: 9.06 IN (230.12 MM)

Thread: NONE



Physical Specifications
Handle: NONE

Seal Material: NONE

Type of Adhesive: PLASTISOL

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: NONE

Outer Jacket: YES - METAL

Configuration: SINGLE OPEN END



Packaging Specifications
Number per Carton: 1

Carton Weight: 4.90 LB (2.22 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**

Intake Air Filter Element
