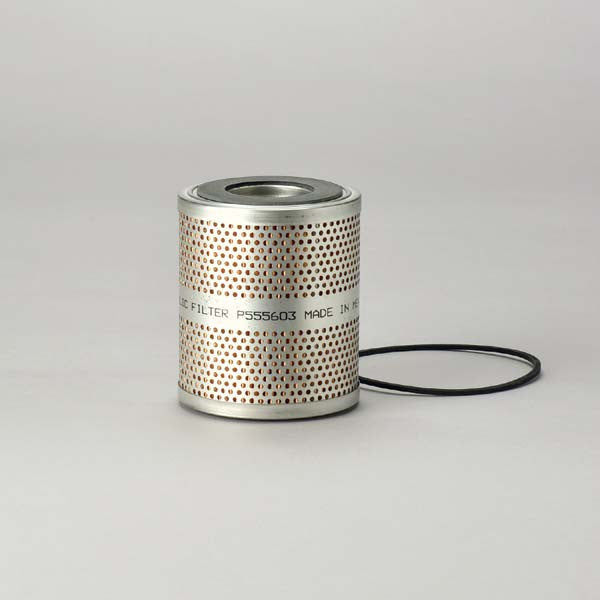

85147 | Carquest | OFS # 97-01-1007

Usually Ships In 24-48 Hours

Performance Data
Micron Rating:  10.00 NOMINAL

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Dimensional Specifications
Outer Diameter, Top:  4.62 IN   (117.35 MM)

Outer Diameter, Bottom:  4.62 IN   (117.35 MM)

Inner Diameter, Top:  2.20 IN   (55.88 MM)

Inner Diameter, Bottom:  2.20 IN   (55.88 MM)

Length:  5.47 IN   (138.94 MM)

Thread:  NONE

Physical Specifications
Handle:  NONE

Seal Material:  BUNA-N

Type of Adhesive:

Type of Endcap:  PLATED STEEL

Center Tube:  PLATED STEEL

Type of Media:  PAPER

Filter Area:  SQ.IN.

Plating:

Outer Jacket:  YES

Configuration:  DOUBLE OPEN END

Packaging Specifications
Number per Carton:  1

Carton Weight:  11.80 LB   (5.35 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
