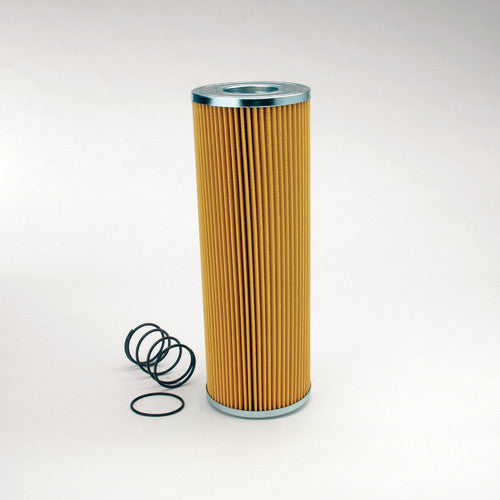

600043 | Kaydon | OFS # 97-01-2508

Performance Data
Micron Rating: 30.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: 75PSID

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 2.63 IN (66.80 MM)

Outer Diameter, Bottom: 2.63 IN (66.80 MM)

Inner Diameter, Top: 1.06 IN (26.92 MM)

Inner Diameter, Bottom: 1.06 IN (26.92 MM)

Length: 9.88 IN (250.95 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: EPOXY

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: ELECTROTIN PLATED

Outer Jacket: NONE - NONE

Configuration: DOUBLE OPEN END

Packaging Specifications
Number per Carton: 12

Carton Weig 6.00 LB (2.72 KG)
