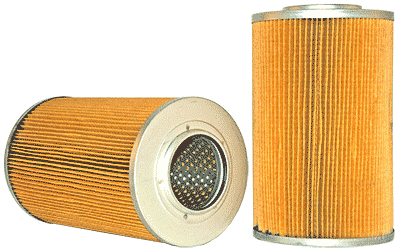

551635 | WIX | Pleated Paper Element | OFS # 97-01-0392

PLEATED PAPER ELEMENT

Lead Time: Usually Ships In 24-28 Hours

Performance Data
Micron Rating: 10.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: 75 PSID

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 4.50 IN (114.30 MM)

Outer Diameter, Bottom: 4.50 IN (114.30 MM)

Inner Diameter, Top: 2.22 IN (56.39 MM)

Inner Diameter, Bottom:

Length: 7.25 IN (184.15 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: POLYVINYLCHLORIDE

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: NONE

Outer Jacket: NONE - NONE

Configuration: SINGLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight: 13.50 LB (6.12 KG)
