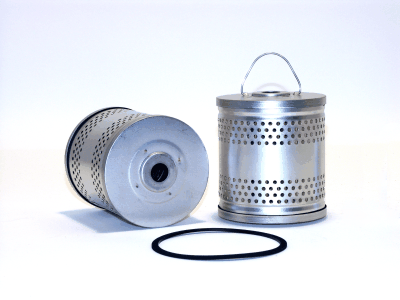

33010 | WIX | Pleated Paper Element | OFS # 97-01-0303

Lead Time: Please Call

Performance Data
Micron Rating: 25.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: 75 PSID

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 3.50 IN (88.90 MM)

Outer Diameter, Bottom: 3.50 IN (88.90 MM)

Inner Diameter, Top: 0.54 IN (13.72 MM)

Inner Diameter, Bottom: 0.54 IN (13.72 MM)

Length: 4.33 IN (109.98 MM)

Thread: NONE

Physical Specifications
Handle: YES

Seal Material: BUNA-N

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: NONE

Outer Jacket: YES

Configuration: DOUBLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight: 0.70 LB (0.32 KG)
