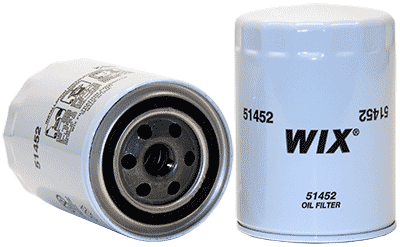

1191 | NAPA Replacement |

Performance Data

Micron Rating:  20.00 NOMNAL

Beta Rating:  N/A

Collapse Pressure Rating:

Maximum Temperature:  225 F

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Dimensional Specifications

Outer Diameter, Top:  3.69 IN   (93.73 MM)

Outer Diameter, Bottom:  3.69 IN   (93.73 MM)

Inner Diameter, Top:

Inner Diameter, Bottom:

Length:  5.38 IN   (136.65 MM)

Thread:  3/4-16

Physical Specifications

Handle:  NONE

Seal Material:  BUNA-N

Type of Adhesive:  PLASTISOL

Type of Endcap:  PLATED STEEL

Center Tube:  PLATED STEEL

Type of Media:  PAPER

Filter Area:  SQ.IN.

Plating:  ELECTROTIN PLATED

Outer Jacket:  YES - METAL

Configuration:  SINGLE OPEN END

Packaging Specifications
Number per Carton:  1

Carton Weight:  14.00 LB   (6.35 KG)

Click Here For www.wixfilters.com Dimensional Specifications

**All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
