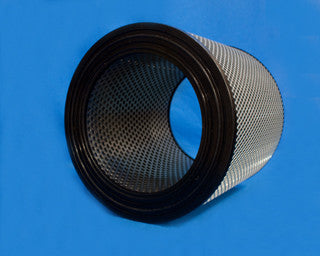

10M826 - AIR MAZE  - Online Filter Supply Replacement Part # 97-06-1076
***Image may vary***

10M826 - AIR MAZE - OFS # 97-06-1076

  • $97.93


AVAILABILITY - PLEASE CALL

Performance Data
Micron Rating:  74.00

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  25 PSID



Dimensional Specifications
Outer Diameter, Top:  10.13 IN   (257.30 MM)

Outer Diameter, Bottom:  10.13 IN   (257.30 MM)

Inner Diameter, Top:  7.00 IN   (177.80 MM)

Inner Diameter, Bottom:  7.00 IN   (177.80 MM)

Length:  10.13 IN   (257.30 MM)

Thread:  NONE



Physical Specifications
Handle:  NONE

Seal Material:  MOLDED

Type of Adhesive:

Type of Endcap:  PLATED STEEL

Center Tube:  STEEL

Type of Media:  304 SS WIRE

Filter Area:  2.2 SQ.IN.

Plating:

Outer Jacket:  NONE

Configuration:  DOUBLE OPEN END



Packaging Specifications
Number per Carton:  1

Carton Weight:  7.00 LB   (3.18 KG) **All Online Filter Supply replacement parts are"equivalent" to or "interchangable" with original manufacture parts, Names and part # used for cross reference only.**
