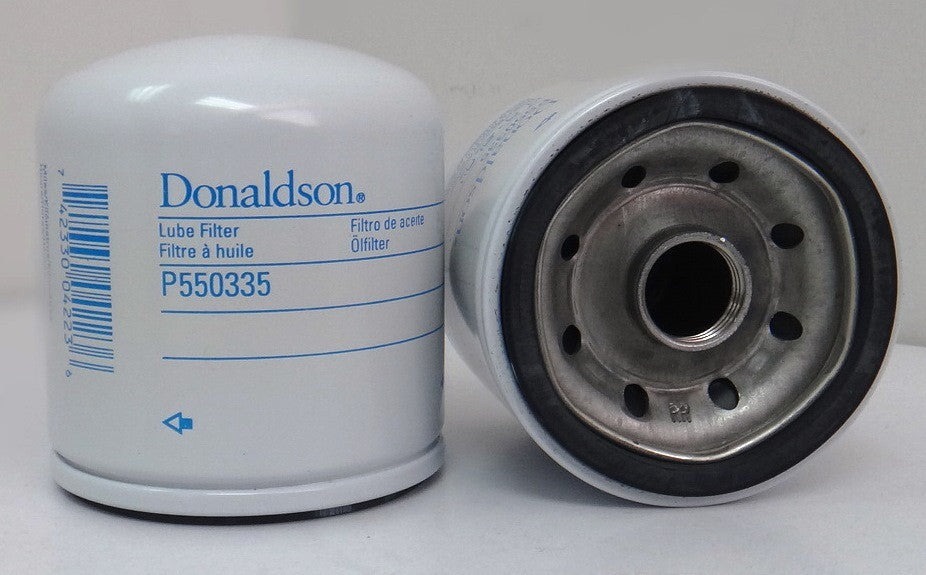

0000229651 | Holder |

Performance Data
Micron Rating:  25.00 NOMINAL

Beta Rating:  N/A

Collapse Pressure Rating:  75 PSID

Maximum Temperature:  225 F

Direction of Flow:  OUTSIDE->IN

Recommended Change-out Differential Pressure:  20 PSID

Dimensional Specifications
Outer Diameter, Top:  3.70 Inches   (93.98 MM)

Outer Diameter, Bottom:  3.70 Inches   (93.98 MM)

Inner Diameter, Top:

Inner Diameter, Bottom:

Length:  3.88 Inches   (98.55 MM)

Thread:  3/4-16 UNF-2B

Physical Specifications
Handle:  NONE

Seal Material:  BUNA-N

Type of Adhesive:  PLASTISOL

Type of End cap:  PLATED STEEL

Center Tube:  PLATED STEEL

Type of Media:  PAPER

Filter Area:  SQ.IN.

Plating:  ELECTROTIN PLATED

Outer Jacket:  YES - METAL

Configuration:  SINGLE OPEN END

Packaging Specifications
Number per Carton:  12

Carton Weight:  13.30 LB   (6.03 KG)

***All Online Filter Supply replacement parts are equivalent to or interchangeable with original manufacture parts, Names and part # used for cross reference only.***
