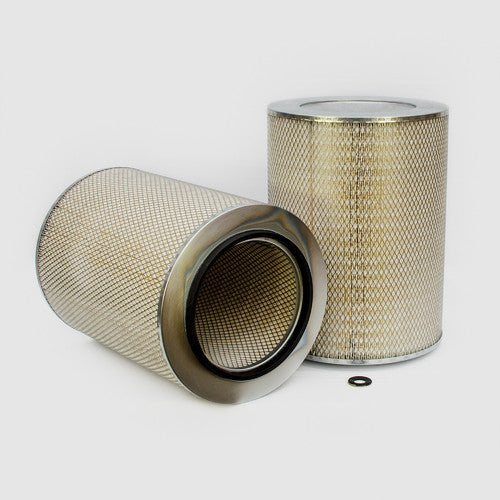

XLP182041 | Donaldson | OFS # 97-22-1130
***Image may vary***

XLP182041 | Donaldson | OFS # 97-22-1130

  • $76.72


Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: N/A

Maximum Temperature: 250 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID



Dimensional Specifications
Outer Diameter, Top: 12.12 IN (307.85 MM)

Outer Diameter, Bottom: 12.12 IN (307.85 MM)

Inner Diameter, Top: 7.69 IN (195.33 MM)

Inner Diameter, Bottom: 0.91 IN (23.11 MM)

Length: 16.50 IN (419.10 MM)

Thread: NONE



Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: PLASTISOL

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: NONE

Outer Jacket: YES - METAL

Configuration: SINGLE OPEN END/BH



Packaging Specifications
Number per Carton: 1

Carton Weight: 9.30 LB (4.22 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**

Intake Air Filter Element
