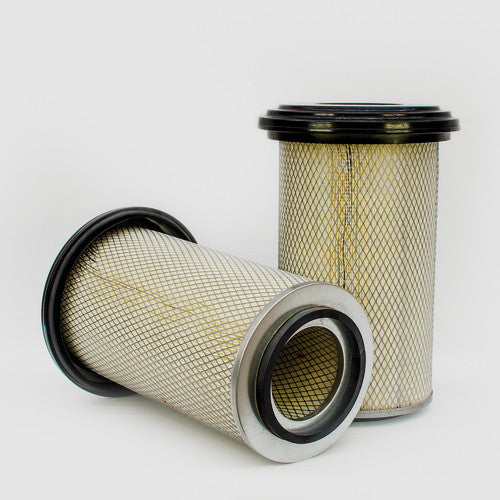

SMP771564 | Donaldson | OFS # 97-22-0614
***Image may vary***

SMP771564 | Donaldson | OFS # 97-22-0614

  • $37.49


Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: N/A

Maximum Temperature: 300 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID



Dimensional Specifications
Outer Diameter, Top: 7.81 IN (198.37 MM)

Outer Diameter, Bottom: 7.81 IN (198.37 MM)

Inner Diameter, Top: 4.09 IN (103.89 MM)

Inner Diameter, Bottom: 0.34 IN (8.64 MM)

Length: 14.75 IN (374.65 MM)

Thread: NONE



Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: EPOXY

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: ELECTROTIN PLATED

Outer Jacket: YES - METAL

Configuration: SINGLE W/BOLT HOLE



Packaging Specifications
Number per Carton: 1

Carton Weight: 5.00 LB (2.27 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**

Intake Air Filter Element
