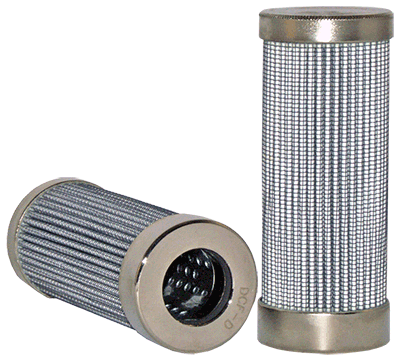

R21H0403A | Fairey Arlon | Pleated Microglass Filter Element | OFS # 97-F9021-4K3B
***Image may vary***

R21H0403A| Fairey Arlon | Pleated Microglass Element OFS # 97-F9021-4K3B

  • $48.13


PLEATED MICROGLASS ELEMENT Usually ships in 24-48 hours Usually Ships In 24-48 Hours

Performance Data
Micron Rating:  3.00 ABSOLUTE

Beta Rating:  B3=200

Collapse Pressure Rating:  3000 PSID

Maximum Temperature:  250 F

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  50 PSID



Dimensional Specifications
Outer Diameter, Top:  1.80 IN   (45.72 MM)

Outer Diameter, Bottom:  1.80 IN   (45.72 MM)

Inner Diameter, Top:  1.00 IN   (25.40 MM)

Inner Diameter, Bottom:

Length:  4.50 IN   (114.30 MM)

Thread:  NONE



Physical Specifications
Handle:  NONE

Seal Material:  BUNA-N

Type of Adhesive:  EPOXY

Type of Endcap:  PLATED STEEL

Center Tube:  PLATED STEEL

Type of Media:  MICROGLASS

Filter Area:  95 SQ.IN.

Plating:  ZINC PLATED

Outer Jacket:  NONE - NONE

Configuration:  SINGLE OPEN END



Packaging Specifications
Number per Carton:  1

Carton Weight:  1.00 LB   (0.45 KG) ***All Online Filter Supply replacement products are equivalent to or interchangeable with original manufacture parts***
