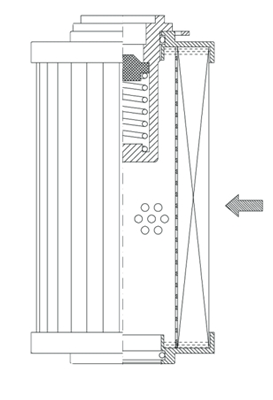

R19C10CB | WIX | Pleated Paper Element | OFS # 97-01-1253
***Image may vary***

R19C10CB | WIX | Pleated Paper Element | OFS # 97-01-1253

  • $0.00

CALL FOR PRICE

PLEATED PAPER ELEMENT

Lead Time: Usually Ships In 24-48 Hours


Performance Data
Micron Rating: 10.00 NOMINAL

Beta Rating: 2/10

Collapse Pressure Rating: 44 PSID

Maximum Temperature: 248 MAX

Direction of Flow: OUTSIDE->IN



Dimensional Specifications
Outer Diameter, Top: 2.75 IN (69.85 MM)

Outer Diameter, Bottom: 2.75 IN (69.85 MM)

Inner Diameter, Top: 1.59 IN (40.39 MM)

Inner Diameter, Bottom:

Length: 8.32 IN (211.33 MM)

Thread: NONE



Physical Specifications
Handle: NONE

Seal Material: BUNA

Type of Adhesive:

Type of Endcap:

Center Tube:

Type of Media: PLEATED PAPER

Filter Area:

Plating:

Outer Jacket: NONE

Configuration: SINGLE OPEN END



Packaging Specifications
Number per Carton: 1

Carton Weight:
