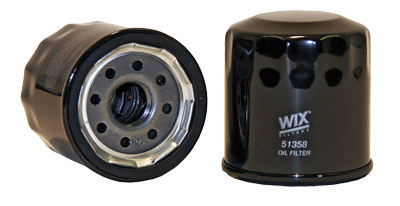

R193| Technocar OFS # 97-25-0802

Lube Filter Element Usually ships in 24-48 hours Usually Ships In 24-48 Hours

Performance Data
Micron Rating:  23.00 NOMINAL

Beta Rating:  B2 = 23

Collapse Pressure Rating:  75 PSID

Maximum Temperature:  275 F

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Dimensional Specifications
Outer Diameter, Top:  2.69 IN   (68.33 MM)

Outer Diameter, Bottom:  2.69 IN   (68.33 MM)

Inner Diameter, Top:

Inner Diameter, Bottom:

Length:  2.63 IN   (66.80 MM)

Thread:

Physical Specifications
Handle:  NONE

Seal Material:  BUNA-N

Type of Adhesive:  PLASTISOL

Type of Endcap:  PLATED STEEL

Center Tube:  PLATED STEEL

Type of Media:  PAPER

Filter Area:  65.8 SQ.IN.

Plating:  ELECTROTIN PLATED

Outer Jacket:  NONE

Configuration:  SINGLE OPEN END

Packaging Specifications
Number per Carton:  12

Carton Weight:  6.30 LB   (2.86 KG) ***All Online Filter Supply replacement products are equivalent to or interchangeable with original manufacture parts***
