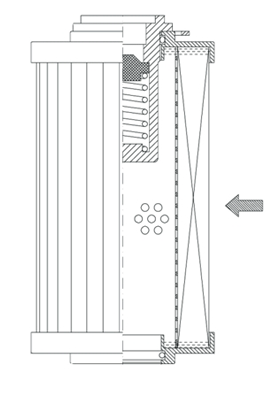

R17C25CB | WIX | Pleated Paper Element | OFS # 97-01-3356
***Image may vary***

R17C25CB | WIX | Pleated Paper Element | OFS # 97-01-3356

  • $15.66


PLEATED PAPER ELEMENT

Lead Time: Usually Ships In 24-48 Hours


Performance Data

Micron Rating: 25.00 NOMINAL

Beta Rating:

Collapse Pressure Rating: 44 PSID

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID



Dimensional Specifications

Outer Diameter, Top: 2.76 IN (70.10 MM)

Outer Diameter, Bottom: 2.76 IN (70.10 MM)

Inner Diameter, Top: 1.16 IN (29.46 MM)

Inner Diameter, Bottom:

Length: 3.35 IN (85.09 MM)

Thread: NONE



Physical Specifications

Handle: NONE

Seal Material: BUNA-N

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: 154 SQ.IN.

Plating:

Outer Jacket: NONE

Configuration: SINGLE OPEN END



Packaging Specifications

Number per Carton: 1

Carton Weight:

Click Here To Compare Dimensional Specifications On WIX Filters Website
