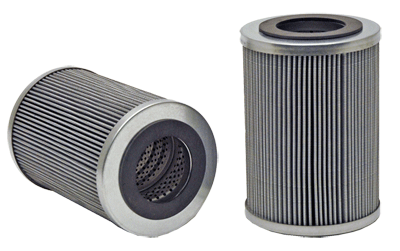

R00D10G | WIX | Pleated Microglass Element | OFS # 97-05-0650
***Image may vary***

R00D10G | WIX | Pleated Microglass Element | OFS # 97-05-0650

  • $101.57


Lead Time: Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 25.00 ABSOLUTE

Beta Rating: B25=200

Collapse Pressure Rating: 150 PSID

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 50 PSID

Dimensional Specifications
Outer Diameter, Top: 4.48 IN (113.79 MM)

Outer Diameter, Bottom: 4.48 IN (113.79 MM)

Inner Diameter, Top: 2.35 IN (59.69 MM)

Inner Diameter, Bottom: 2.35 IN (59.69 MM)

Length: 6.54 IN (166.12 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: EPOXY

Type of Endcap: PLATED STEEL


Type of Media: MICROGLASS

Filter Area: N/A

Plating: ZINC

Outer Jacket: NONE

Configuration: DOUBLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight: 3.00 LB (1.36 KG)

***Online Filter Supply, Requires A Minimum Order Amount Of $25.00 On All Orders***

*** All Of Online Filter Supply , Replacement Filters Meet Or Exceed The Overall Quaility Of The Original Equipment Manufacturer And Can Be Used As Direct Replacements***
