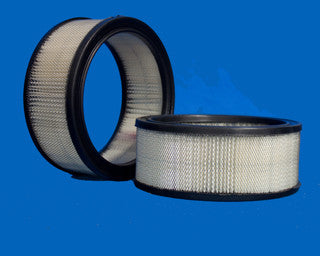

PA657 - BALDWIN - OFS # 97-22-0597

AVAILABILITY - Usually ships in 24-48 hours

Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: NOT RATED

Maximum Temperature: 450 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 8.40 IN (213.36 MM)

Outer Diameter, Bottom: 8.40 IN (213.36 MM)

Inner Diameter, Top: 6.59 IN (167.39 MM)

Inner Diameter, Bottom: 6.59 IN (167.39 MM)

Length: 3.25 IN (82.55 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: MOLDED

Type of Adhesive: PLASTISOL

Type of Endcap: PLASTISOL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: ELECTROTIN PLATED

Outer Jacket: YES

Configuration: DOUBLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight: 5.40 LB (2.45 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
