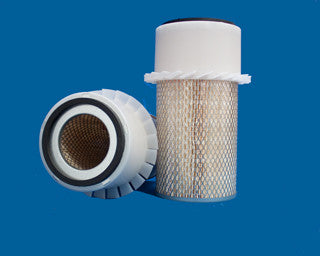

PA1681-FN - BALDWIN   - Online Filter Supply Replacement Part # 97-22-0512
***Image may vary***

PA1681-FN | Baldwin | OFS # 97-22-0512

  • $28.83


Availability

Lead Time: Usually Ships In 24-48 Hours

Shipping Service: UPS Ground

Performance Data

Micron Rating:  15.00 NOMINAL

Beta Rating:  N/A

Collapse Pressure Rating:  N/A

Maximum Temperature:  250 F

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID



Dimensional Specifications

Outer Diameter, Top:  7.81 IN   (198.37 MM)

Outer Diameter, Bottom:  6.09 IN   (154.69 MM)

Inner Diameter, Top:  0.65 IN   (16.51 MM)

Inner Diameter, Bottom:  3.50 IN   (88.90 MM)

Length:  12.25 IN   (311.15 MM)

Thread:  NONE

Physical Specifications

Handle:  NONE

Seal Material:  BUNA-N

Type of Adhesive:  PLASTISOL

Type of Endcap:  PLATED STEEL

Center Tube:  PLATED STEEL

Type of Media:  PAPER

Filter Area:  SQ.IN.

Plating:  NONE

Outer Jacket:  YES - METAL

Configuration:  SINGLE OPEN END/BH



Packaging Specifications

Number per Carton:  1

Carton Weight:  3.00 LB   (1.36 KG)



**All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**

Intake Air Filter Element
