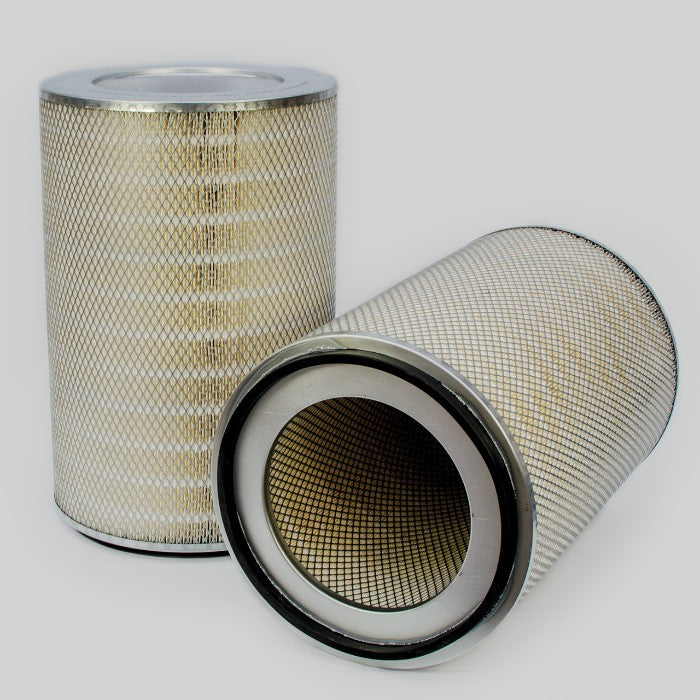

P812602 | Donaldson | OFS # 97-22-1125

Performance Data
Micron Rating:  15.00 NOMINAL

Beta Rating:  N/A

Collapse Pressure Rating:  N/A

Maximum Temperature:  250 F

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Dimensional Specifications
Outer Diameter, Top:  12.09 IN   (307.02 MM)

Outer Diameter, Bottom:  12.08 IN   (306.83 MM)

Inner Diameter, Top:  0.67 IN   (17.02 MM)

Inner Diameter, Bottom:  7.72 IN   (196.10 MM)

Length:  18.49 IN   (469.65 MM)

Bolt Hole Diameter:  0.66 IN (16.76 MM)

Thread:  NONE

Physical Specifications
Handle:  NONE

Seal Material:  BUNA-N

Type of Adhesive:  PLASTISOL

Type of Endcap:  PLATED STEEL

Center Tube:  PLATED STEEL

Type of Media: CELLULOSE / PAPER

Filter Area:  SQ.IN.

Plating:  NONE

Outer Jacket:  YES - METAL

Configuration:  SINGLE OPEN / BOLT H

Filter Type:  PRIMARY ROUND, INTAKE AIR FILTER ELEMENT

Packaging Specifications
Number per Carton:  1

Carton Weight:  10.20 LB   (4.63 KG)

Gross Volume:  2.2999 FT3
