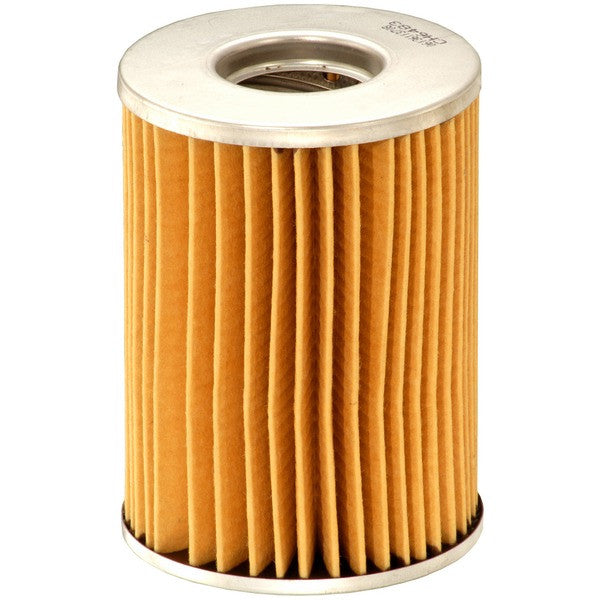

P779619 | Donaldson | OFS # 97-01-0947
Performance Data
Micron Rating: 0.00 NOMINAL
Beta Rating:
Collapse Pressure Rating:
Maximum Temperature:
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 3.48 IN (88.39 MM)
Outer Diameter, Bottom: 3.47 IN (88.14 MM)
Inner Diameter, Top:
Inner Diameter, Bottom: 1.36 IN (34.54 MM)
Length: 4.82 IN (122.43 MM)
Thread: NONE
Physical Specifications
Handle: NONE
Seal Material:
Type of Adhesive:
Type of Endcap: PLATED STEEL
Center Tube: PLATED STEEL
Type of Media: PAPER
Filter Area: SQ.IN.
Plating:
Outer Jacket: NONE
Configuration: SINGLE OPEN END
Packaging Specifications
Number per Carton: 1
Carton Weight: 6.30 LB (2.86 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
