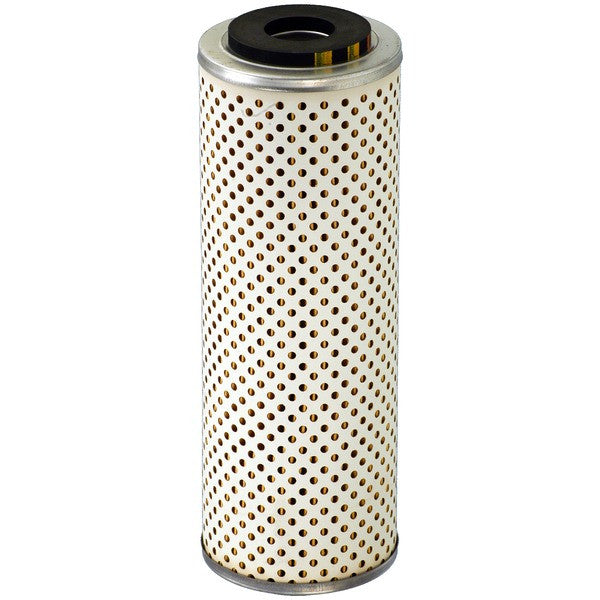

P779281 | DONALDSON | Depth Type Element
***Image may vary***

P779281 | Donaldson | Depth Type Element | OFS # 97-10-0184

  • $27.48


Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 0.00 NOMINAL

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 25 PSID



Dimensional Specifications
Outer Diameter, Top: 3.01 IN (76.45 MM)

Outer Diameter, Bottom: 3.01 IN (76.45 MM)

Inner Diameter, Top: 1.04 IN (26.42 MM)

Inner Diameter, Bottom: 1.04 IN (26.42 MM)

Length: 8.70 IN (220.98 MM)

Thread: NONE



Physical Specifications
Handle: NONE

Seal Material:

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube:

Type of Media:

Filter Area: SQ.IN.

Plating:

Outer Jacket: YES

Configuration: DOUBLE OPEN END



Packaging Specifications
Number per Carton: 12

Carton Weight: 9.00 LB (4.08 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
