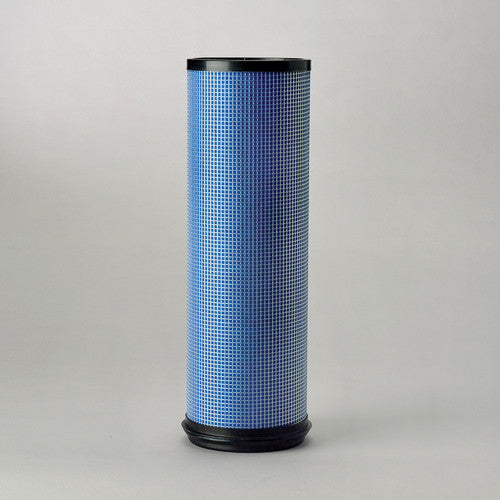

P777551 | DONALDSON | Spin-on Filter Element
***Image may vary***

P777551 | Donaldson | Spin-on Filter Element | OFS # 97-25-0723

  • $20.13


Spin-On Filter Element Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 0.00

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID



Dimensional Specifications
Outer Diameter, Top: 3.62 IN (91.95 MM)

Outer Diameter, Bottom: 3.62 IN (91.95 MM)

Inner Diameter, Top:

Inner Diameter, Bottom:

Length: 5.35 IN (135.89 MM)

Thread: 3/4"-16



Physical Specifications
Handle: NONE

Seal Material: BUNA-A

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: ELECTROTIN PLATED

Outer Jacket: YES

Configuration: SINGLE OPEN END



Packaging Specifications
Number per Carton: 1

Carton Weight: **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
