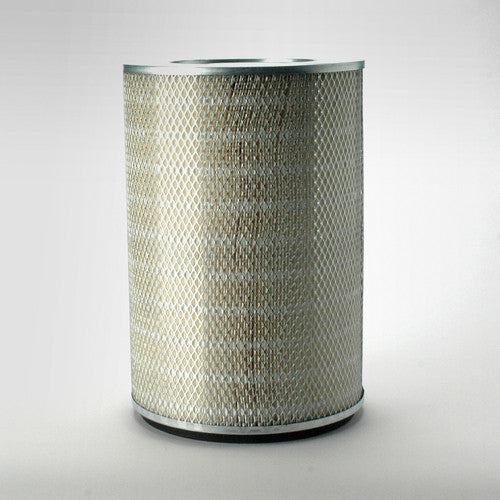

P774524 | DONALDSON | Intake Air Filter Element
***Image may vary***

P774524 | Donaldson | OFS # 97-22-1129

  • $57.98


Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: N/A

Maximum Temperature: 250 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID



Dimensional Specifications
Outer Diameter, Top: 11.09 IN (281.69 MM)

Outer Diameter, Bottom: 11.08 IN (281.43 MM)

Inner Diameter, Top: 0.67 IN (17.02 MM)

Inner Diameter, Bottom: 6.73 IN (170.94 MM)

Length: 16.56 IN (420.62 MM)

Thread: NONE



Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: PLASTISOL

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: NONE

Outer Jacket: YES - METAL

Configuration: SINGLE OPEN END/BH



Packaging Specifications
Number per Carton: 1

Carton Weight: 8.50 LB (3.86 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**

Intake Air Filter Element
