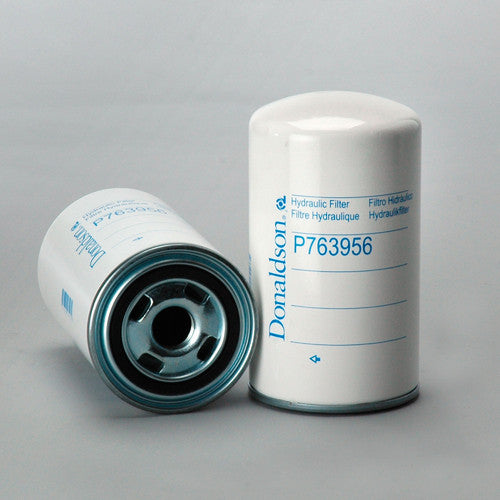

Spin-On Filter Element Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 25.00 NOMINAL

Beta Rating: N/A BPV 36.26

Collapse Pressure Rating: 75 PSID

Maximum Temperature: 175 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 3.68 IN (93.47 MM)

Outer Diameter, Bottom: 3.68 IN (93.47 MM)

Inner Diameter, Top:

Inner Diameter, Bottom:

Length: 6.87 IN (174.50 MM)

Thread: 1-12 UNF-2B

Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: NONE

Type of Endcap: STEEL

Center Tube: STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating:

Outer Jacket: YES

Configuration: SINGLE OPEN SPIN ON

Packaging Specifications
Number per Carton: 1

Carton Weight: 20.00 LB (9.07 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
