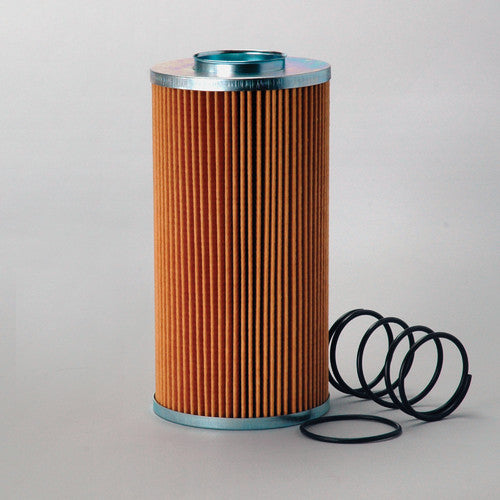

P763268 | Donaldson | OFS # 97-570511
Performance Data
Micron Rating: 10.00 NOMINAL
Beta Rating:
Collapse Pressure Rating: 24.7 PSI
Maximum Temperature: 225 F
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Additional Notes: ELEMENT HAS BY-PASS VALVE
Dimensional Specifications
Outer Diameter, Top: 5.12 IN (130.05 MM)
Outer Diameter, Bottom: 5.12 IN (130.05 MM)
Inner Diameter, Top: 2.56 IN (65.02 MM)
Inner Diameter, Bottom:
Length: 9.84 IN (249.94 MM)
Thread: NONE
Physical Specifications
Handle: NONE
Seal Material: BUNA-N
Type of Adhesive:
Type of Endcap: PLATED STEEL
Center Tube: PLATED STEEL
Type of Media: PAPER
Filter Area: 1097 SQ.IN.
Plating:
Outer Jacket: NONE
Configuration: SINGLE OPEN END
Packaging Specifications
Number per Carton: 1
Carton Weight: **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
