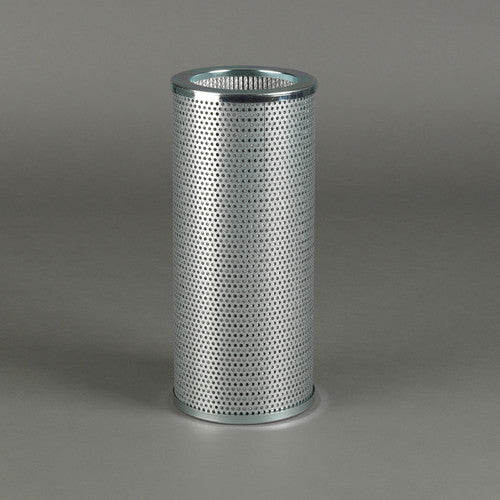

P763018 | DONALDSON | Filter Element
***Image may vary***

P763018 | Donaldson | Filter Element | OFS # 97-05-1294

  • $100.43

Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 6.00 ABSOLUTE

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature: 248

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 50 PSID

Dimensional Specifications
Outer Diameter, Top: 4.96 IN (125.98 MM)

Outer Diameter, Bottom: 4.96 IN (125.98 MM)

Inner Diameter, Top: 0.40 IN (10.16 MM)

Inner Diameter, Bottom: 3.62 IN (91.95 MM)

Length: 11.41 IN (289.81 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive:

Type of Endcap: PLATED STEEL


Type of Media: MICROGLASS

Filter Area: 829 SQ.IN.


Outer Jacket: NONE

Configuration: SINGLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight: **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
