P607369 | Donaldson | OFS # 97-33-0353
Performance Data
Micron Rating: 15.00
Beta Rating:
Collapse Pressure Rating:
Maximum Temperature:
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 13.81 IN (350.77 MM)
Outer Diameter, Bottom: 14.50 IN (368.30 MM)
Inner Diameter, Top: 9.50 IN (241.30 MM)
Inner Diameter, Bottom: 0.93 IN (23.62 MM)
Length: 27.31 IN (693.67 MM)
Thread: NONE
Physical Specifications
Handle: NONE
Seal Material:
Type of Adhesive:
Type of Endcap: PLATED STEEL
Center Tube: STEEL
Type of Media: PAPER
Filter Area: SQ.IN.
Plating:
Outer Jacket: YES
Configuration:
Packaging Specifications
Number per Carton: 1
Carton Weight: **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**

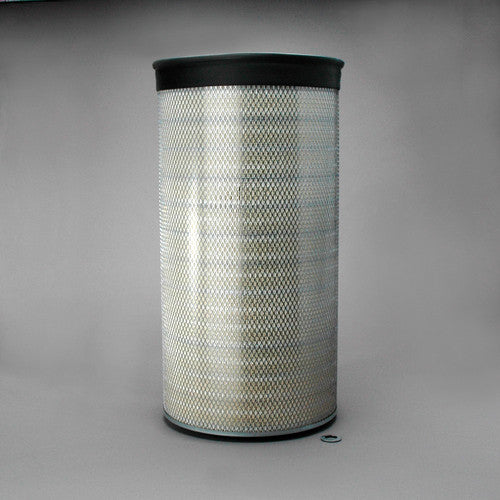

Intake Air Filter Element
