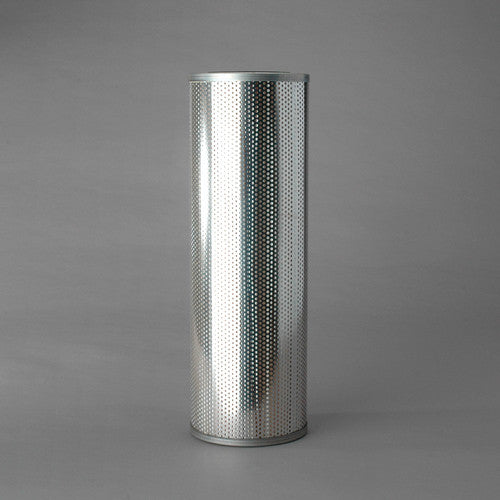

P569532 | DONALDSON | Water Absorbtion Element
***Image may vary***

P569532 | Donaldson | Water Absorbtion Element | OFS # 97-696519

  • $62.62


Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 10.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: 75 PSID

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID



Dimensional Specifications
Outer Diameter, Top: 6.00 IN (152.40 MM)

Outer Diameter, Bottom: 6.00 IN (152.40 MM)

Inner Diameter, Top: 2.63 IN (66.80 MM)

Inner Diameter, Bottom: 2.63 IN (66.80 MM)

Length: 18.00 IN (457.20 MM)

Thread: NONE



Physical Specifications
Handle: NONE

Seal Material: FIBER

Type of Adhesive: EPOXY

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER/CHEM

Filter Area: SQ.IN.

Plating: ELECTROTIN PLATED

Outer Jacket: YES - METAL

Configuration: DOUBLE OPEN END



Packaging Specifications
Number per Carton: 1

Carton Weight: 6.00 LB (2.72 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
