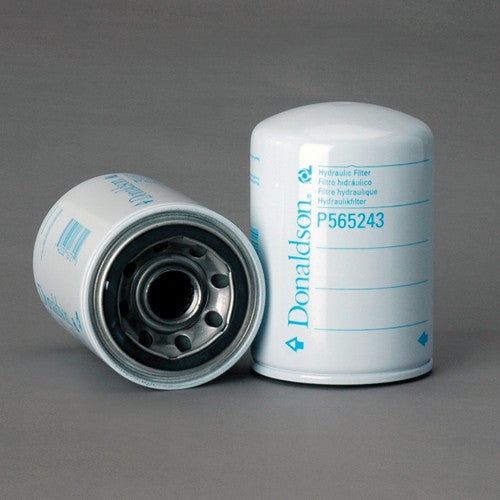

P565243 | DONALDSON | Spin-on Filter Element
***Image may vary***

P565243 | Donaldson | Spin-on Filter Element | OFS # 97-25-0190

  • $23.98


Spin-On Filter Element Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 5.00

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Additional Notes: 100 PSI WORKING PRESSURE



Dimensional Specifications
Outer Diameter, Top: 3.68 IN (93.47 MM)

Outer Diameter, Bottom: 3.68 IN (93.47 MM)

Inner Diameter, Top:

Inner Diameter, Bottom:

Length: 5.59 IN (141.99 MM)

Thread: 3/4-14 BSP



Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: 3.3 SQ.FT.

Plating: ELECTROTIN PLATED

Outer Jacket: YES

Configuration: SINGLE OPEN END



Packaging Specifications
Number per Carton: 12

Carton Weight: 14.00 LB (6.35 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
