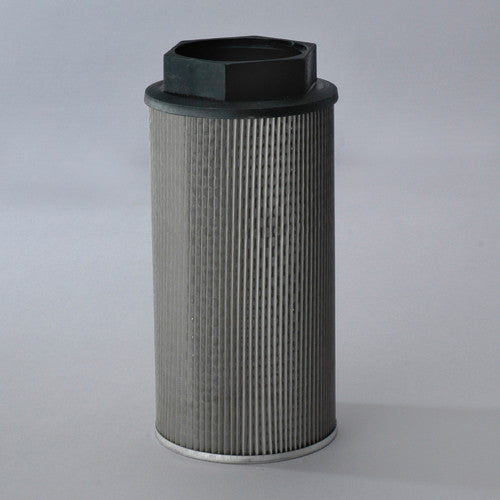

P562223 | DONALDSON | Suction Strainer
***Image may vary***

P562223 | Donaldson | Suction Strainer | OFS # 97-09-0212

  • $80.45


Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 149.00 ABSOLUTE

Beta Rating: N/A

Collapse Pressure Rating: 75 PSID

Maximum Temperature: 250 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Additional Notes: 100 MESH / 100GPM



Dimensional Specifications
Outer Diameter, Top: 5.00 IN (127.00 MM)

Outer Diameter, Bottom:

Inner Diameter, Top:

Inner Diameter, Bottom:

Length: 12.50 IN (317.50 MM)

Thread: 3" NPT



Physical Specifications
Handle: NONE

Seal Material: NONE

Type of Adhesive: EPOXY

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: 304 SS WIRE

Filter Area: SQ.IN.

Plating:

Outer Jacket: NONE - NONE

Configuration: SINGLE OPEN END



Packaging Specifications
Number per Carton: 1

Carton Weight: 3.00 LB (1.36 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
