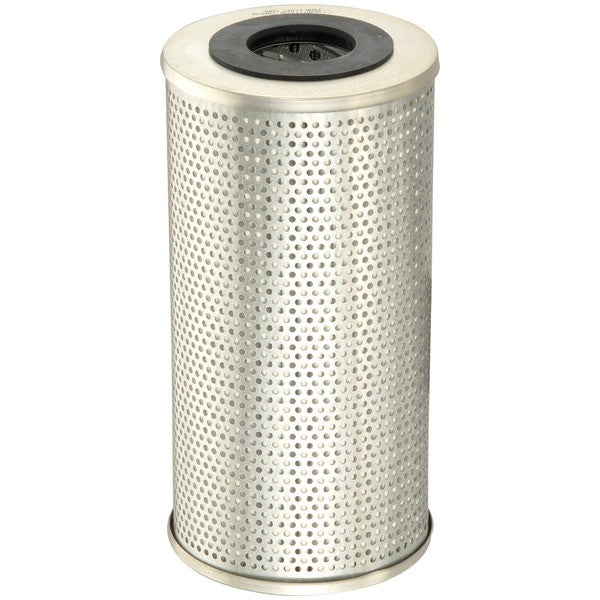

P55654 | DONALDSON | Pleated Microglass Filter Element
***Image may vary***

P55654 | Donaldson | OFS # 97-01-0957

  • $101.39

Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 4.52 IN (114.81 MM)

Outer Diameter, Bottom: 4.52 IN (114.81 MM)

Inner Diameter, Top: 1.75 IN (44.45 MM)

Inner Diameter, Bottom: 1.75 IN (44.45 MM)

Length: 9.10 IN (231.14 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive:

Type of Endcap: PLATED STEEL


Type of Media: MICROGLASS

Filter Area: SQ.IN.


Outer Jacket: YES

Configuration: DOUBLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight: 16.00 LB (7.26 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
