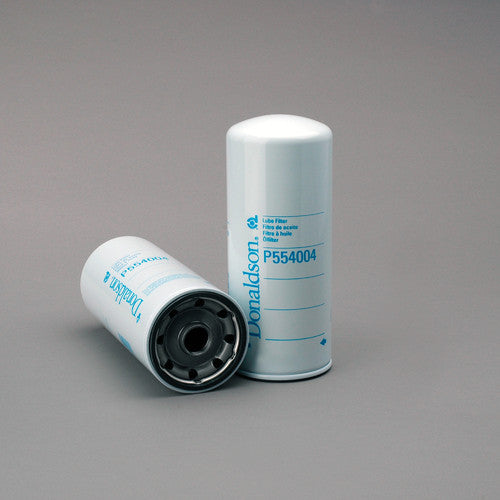

P554004 | DONALDSON | Spin-on Filter Element
***Image may vary***

P554004 | Donaldson | Spin-on Filter Element | OFS # 97-25-0473

  • $12.21


Spin-On Filter Element Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 25.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: 100 PSID

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID



Dimensional Specifications
Outer Diameter, Top: 4.25 IN (107.95 MM)

Outer Diameter, Bottom: 4.25 IN (107.95 MM)

Inner Diameter, Top:

Inner Diameter, Bottom:

Length: 10.06 IN (255.52 MM)

Thread: 1 1/8-16



Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: PLASTISOL

Type of Endcap: PLATED STEEL

Center Tube: STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: ELECTROTIN PLATED

Outer Jacket: YES - METAL

Configuration: SINGLE OPEN END



Packaging Specifications
Number per Carton: 12

Carton Weight: 29.30 LB (13.29 KG)

**All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacturer parts, Names and part # used for cross reference only.**
