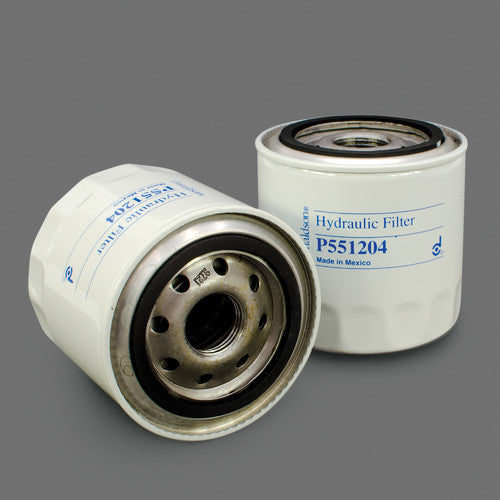

P551204 | DONALDSON | Spin-on Filter Element
***Image may vary***

P551204 | Donaldson | Spin-on Filter Element | OFS # 97-25-0553

  • $11.16


Spin-On Filter Element Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: 75 PSID

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID



Dimensional Specifications
Outer Diameter, Top: 3.71 IN (94.23 MM)

Outer Diameter, Bottom: 3.71 IN (94.23 MM)

Inner Diameter, Top:

Inner Diameter, Bottom:

Length: 3.82 IN (97.03 MM)

Thread: 1-12 UNF-2B



Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: PLASTISOL

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: ELECTROTIN PLATED

Outer Jacket: YES

Configuration: SINGLE OPEN SPIN-ON



Packaging Specifications
Number per Carton: 1

Carton Weight: 1.00 LB (0.45 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
